Permeable Short Fiber Non Woven Geotextile For Subgrade Soil Separation

Grande immagine : Permeable Short Fiber Non Woven Geotextile For Subgrade Soil Separation

Dettagli:

Luogo di origine:	CN
Marca:	Haisan
Numero di modello:	hs-non tessuto

Termini di pagamento e spedizione:

Quantità di ordine minimo:	1000㎡
Prezzo:	USD 0.2-5.8
Imballaggi particolari:	Borsa in tessuto PP
Tempi di consegna:	5-10 giorni lavorativi
Termini di pagamento:	T/T, L/C
Capacità di alimentazione:	1000000㎡ al mese

Contatto

Permeable Short Fiber Non Woven Geotextile For Subgrade Soil Separation

descrizione

Articolo:	tessuto filtrante geotessile non tessuto	Tipo:	Non tessuto
Utilizzo:	strada\|autostrada	Peso grammo:	100~800 g/m2
Pacchetto:	Customerised	Resistenza alla trazione:	10-50 kN/m
campione:	accettare

Permeable Short Fiber Non Woven Geotextile For Subgrade Soil Separation

In structural and hydraulic engineering, managing water flow while locking fine soil particles in place is vital for long-term stability. Our high-grade Short Fiber Nonwoven Geotextile is manufactured from short, resilient synthetic fibers that are meticulously carded and needle-punched into a highly porous three-dimensional mat.

This unique interlocking network makes it an incredibly effective filter fabric, offering outstanding water flow rates that prevent hydrostatic pressure buildup beneath pavements and embankments. Unlike rigid barriers, this flexible drainage cloth contours perfectly to rough earth surfaces, acting as a reliable separator that stops different soil strata from mixing. Furthermore, the thick, shock-absorbing properties of this nonwoven protective mat shield critical containment liners from sharp stone punctures, ensuring dependable performance throughout its service life.

Technical Specifications

Specification	100	150	200	300	400	500	600	800	Remark
Quality deviation per unit acreage%	-8	-8	-8	-7	-7	-6	-6	-6
Thickness,mm≥	0.9	1.3	1.7	2.4	3.0	3.6	4.1	5.0
Width deviation for range,%m	0.5
Mightiness at break,KN/m ≥	2.5	4.5	6.5	9.5	12.5	16.0	19.0	25.0	Vertical and horizontal
Elongation at break,%	25-100								Vertical and horizontal
CBR bursting strengthk,KN≥	0.3	0.6	0.9	1.5	2.1	2.7	3.2	4.0
Effective aperture O90(O95)mm	0.07-0.20
Vertical osmotic coefficient,cm/s	K x(10-1-10-3)								K=1.0-9.9
Tearing strength, KN≥	0.08	0.12	0.16	0.24	0.33	0.42	0.46	0.60	Vertical and horizontal

Why Choose Our Geotextiles?

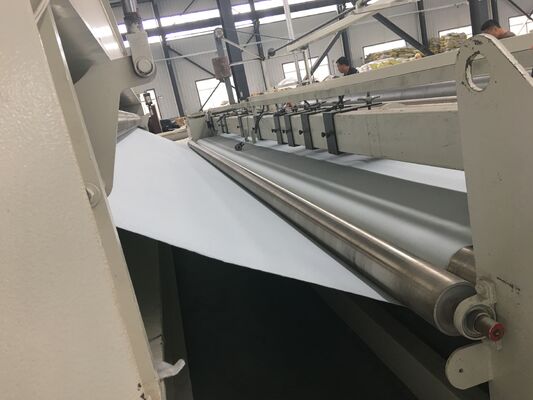

High-Volume Production Output: Utilizing advanced carding and high-speed needle-punching machinery, our factory produces massive volume daily to guarantee rapid shipment for large B2B orders.
Rigorous Batch Filtration Testing: Every production batch is carefully sampled and checked for uniform thickness, weight consistency, and water permeability to ensure compliant field performance.
Superior Interlocking Fibers: We optimize our needle-punching density to ensure the short fibers are tightly tangled, giving the fabric excellent tear resistance and optimal pore sizes.
Verified Global Engineering Success: Distributors and infrastructure contractors worldwide depend on our stable material standards to pass local municipal quality audits and site approvals easily.

Primary Applications

Sports Fields & Artificial Turfs: Installed beneath stadium lawns and golf courses to quickly drain heavy rainwater, preventing waterlogging while maintaining a level playing surface.
Retaining Wall Backfills: Placed directly behind structural block walls to drain away trapped moisture, preventing water pressure from collapsing the masonry.
Driveway & Paved Road Bases: Separating the soft subgrade clay from the aggregate base course to prevent mud from pumping up and causing potholes.
Geomembrane Protection Cushions: Installed directly underneath heavy pond liners to act as an untearable shield against sharp rocks, roots, and uneven subgrade rubble.
Coastal Rip-Rap Underlayment: Laid beneath heavy stone armor blocks along rivers and coastals to let water flow out naturally while preventing the waves from washing away the shoreline soil.

Frequently Asked Questions (FAQ)

What is the service life of your HDPE geomembrane?

When buried, our HDPE liners have a projected lifespan of over 50-100 years. For exposed applications, the UV-stabilized formula ensures a lifespan of 15-20 years depending on the region.

Can you provide customized roll sizes for specific pond dimensions?

Yes, we can customize the roll length to optimize your container loading and minimize on-site welding for your specific project layout.

Do you offer welding equipment or installation guidance?

We provide high-quality wedge welders and extrusion welders for purchase, along with comprehensive installation manuals and remote technical video support.

What is the main function of Staple Fiber Geotextile?

It is primarily used for filtration, drainage, and soil separation, allowing water to pass through freely while preventing fine soil particles from washing away or mixing with gravel layers.
